PMR218 Pattern - Tilley Designline Perforation

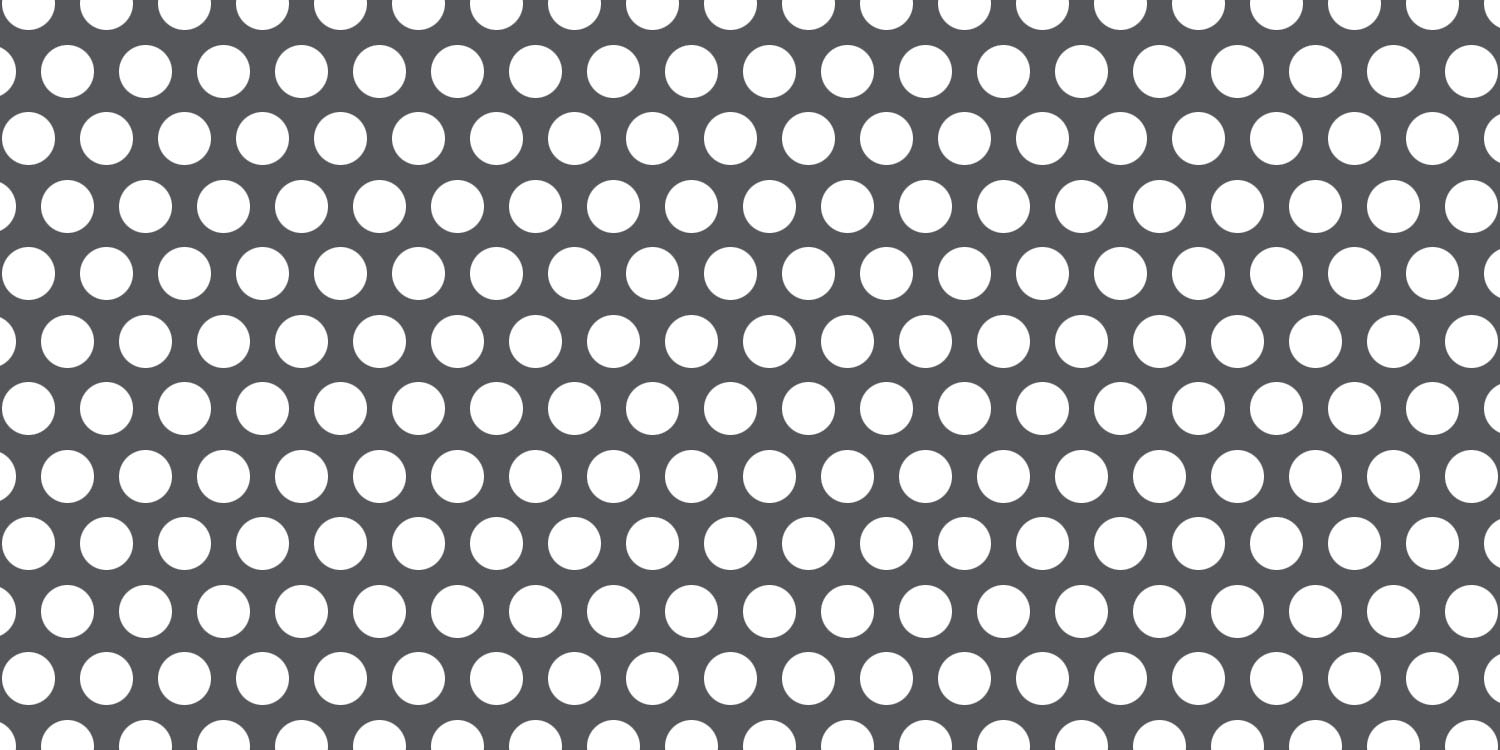

Please note: pattern not shown to scale, and is indicative only.
Tilley Group Ltd reserve the right to change specifications without notice to allow for product improvement.

Specifications:
Pattern: Round
Hole Size: ø6.0mm
Open Area: 40%

Stock sheet options available:
Aluminium: 1.2, 1.5, 2.0mm
Galv: 0.95, 1.2mm
Mild Steel: 1.2, 1.5, 2.0, 3.0, 5.0mm
Stainless Steel 304: 1.2, 1.5mm
Stainless Steel 316: 1.2, 1.5, 2.5, 3.0mm

Downloads:
Stock Sheet Brochure PDF
When printed at “actual size”, patterns will be shown at 1:1 true size

Pattern PDF
Custom Perforation Capabilities PDF

This design is available for custom punching. Talk to us about manufacturing this design to meet your requirements.

Our stock off-the-shelf perforated metal patterns are used extensively in the architectural, engineering, construction, manufacturing, food processing, material handling, safety, security and agricultural sectors.

Give our experienced team a call to find out more about our custom manufacturing, design assistance, punching, laser cutting, shearing, folding, forming, fabrication and finishing capabilities for your project. Our New Zealand-based factory is equipped for large scale bespoke solutions and high volume production runs.
